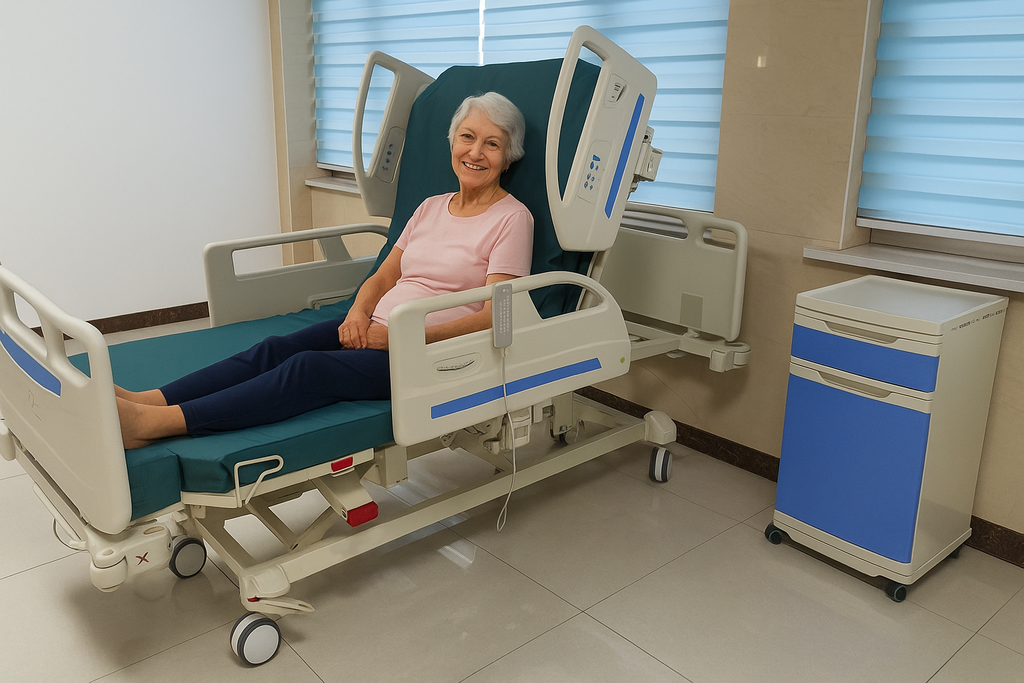

5-Function Electric Bed

Key Features:

• Split Side Rails – Four protective PP rails for enhanced patient safety

• Central Nurse Control System – Full-position control accessible to nursing staff

• Integrated Bed Extension – Accommodates taller patients with ease

• X-Ray Cassette Holder – Imaging without the need for patient transfer

• Manual & Electric CPR Function – Fast response during emergencies

• Removable Mattress Platform – Simplifies disinfection and maintenance

• Linen Shelf – Built-in foot-end storage for quick access

• Head/Foot Board Locks – Secure in place during patient transport

• Trendelenburg: Head lower than feet – supports circulation and surgical prep

• Reverse Trendelenburg: Head higher – promotes respiratory comfort and pressure relief

Technical Specifications:

• Overall Dimensions: 2,220 mm (L) × 1,075 mm (W)

• Mattress Platform: 1,960 mm × 900 mm

• Height Adjustment: 440 mm – 760 mm

• Backrest Angle: Up to 70°

• Thigh Rest Angle: Up to 25°

• Trendelenburg Tilt: Up to 12°

• Side Rail Height: 380 mm

• Safe Working Load: 200 kg (440.9 lbs)
